ShipConstructor 2015 R2.1 – Overview


ShipConstructor 2015 R2.1 is a response to emerging ship design, engineering and building trends identified by a “Client Council” of industry leaders.

The expert advisors on this software launch were representatives from US and Canadian companies: Genoa Design, Glosten & Associates, Gunderson Marine, and Trinity Marine Products. The client council identified the following features which were incorporated into this release.

“Regular Expression” Report Filtering: configure once, filter on anything

This Client Council members told SSI they wanted complex filtering within the ShipConstructor Report Product that they only had to set up once but which then could be repeatedly run.

The Solution: SSI created an enormously powerful tool within Report that lets you filter on any complex criteria using  “Regular Expressions” (RegEx). Cheat sheets on writing RegEx qualifiers are prevalent on the internet but SSI can help users create exactly the filters you need. Also see the ShipConstructor Knowledge Base for additional RegEx report filtering examples.

Report before filtering

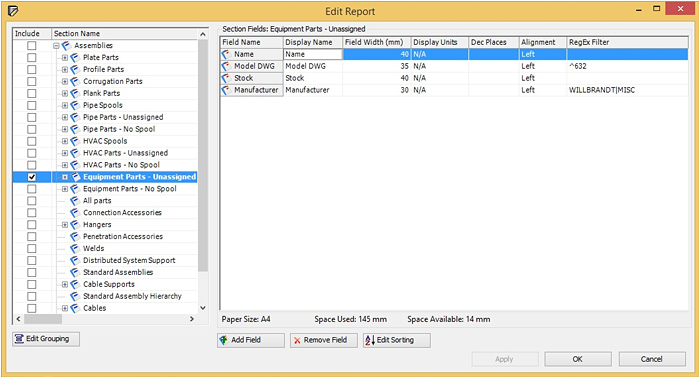

Define RegEx filters
Report after applying the filters

Table. Some simple examples of typical filters

Stiffener Cutouts through Profile Flanges: make more room in tight spaces


Stiffener with Flange Cutouts

Flange Cutout in way of pipe

The Client Council noted that space is often at a premium, especially on smaller vessels. Every inch counts so sometimes cutouts on profile flanges are required to make room for pipes and distributed systems. Now you can model these in ShipConstructor.

Adding Bevel Standards to Curved Plate Parts

ShipConstructor 2015 R2.1 now lets you specify a bevel code for the edges of curved plates. This is important because frequently these plates must be beveled prior to welding. Adding bevels within ShipConstructor allows this process to be managed properly and enhances communication via visuals. Ultimately, this saves time and promotes quality as opposed to inefficient manual processes.

Efficient Renaming of Units

Change happens and ShipConstructor is committed to smoothly managing it. A much requested feature is an efficient, non-script-based method for renaming units. ShipConstructor 2015 R2.1 now has an automated method for performing this task.

Rotating Faceplates: easily accommodate camber and other slopes


Faceplate on longitudinal following deck camber angle

Faceplate offset at an angle other than perpendicular

In response to a common modeling workflow, ShipConstructor 2015 R2.1 now lets you orient a straight faceplate at angles other than perpendicular to the plate (i.e. 90 degrees). The need for this function arises in several situations such as when a deck has camber and the frames below include a faceplate that is an offset of that cambered deck line. Rotated faceplates are also relatively common in small craft. For instance, whenever you have stiffeners perpendicular to the hull, you will have issues with faceplates that will need to be adjusted to a given angle at the top connection. This new ShipConstructor feature will save users time and effort when rotating faceplates and is especially welcome since this capability is not found in other shipbuilding CAD/CAM programs.

Add Unit to Penetration Naming Conventions: find penetrations quickly

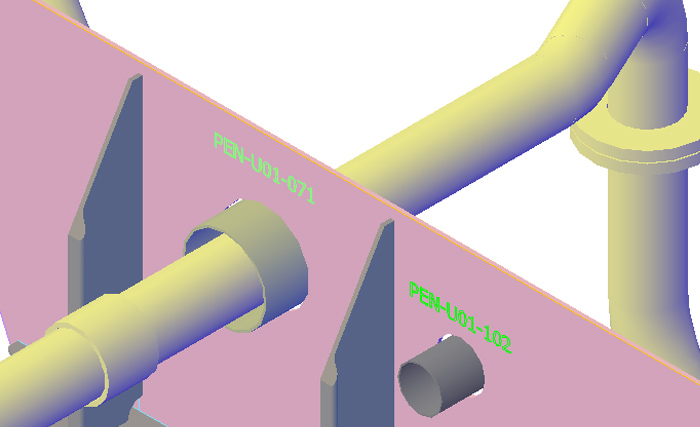

Penetrations with Unit Name

Locating penetrations is now easier because ShipConstructor 2015 R2.1 allows the Unit to be added to penetration naming conventions.

System Requirements

SSI recommends installing the ShipConstructor 2015 R2 client with AutoCAD 2014 SP1 and Windows 7 (64 bit)

Supported AutoCAD Platforms

  • AutoCAD 2013 SP1.1
  • AutoCAD Mechanical 2013 SP1
  • AutoCAD Electrical 2013 SP1
  • AutoCAD P&ID 2013 SP1
  • AutoCAD Plant 3D 2013 SP1
  • AutoCAD 2014 SP1
  • AutoCAD Mechanical 2014 SP1
  • AutoCAD Electrical 2014 SP1
  • AutoCAD P&ID 2014 SP1
  • AutoCAD Plant 3D 2014 SP1
  • AutoCAD 2015 SP2
  • AutoCAD Mechanical 2015 SP2
  • AutoCAD Electrical 2015 SP2
  • AutoCAD P&ID 2015 SP2
  • AutoCAD Plant 3D 2015 SP2

Supported Client Operating Systems

  • Windows 7 (64 bit)
  • Windows 8.1 (64 bit)

Supported Server Operating Systems

  • Windows Server 2008 (64 bit)
  • Windows Server 2008 R2 (64 bit)
  • Windows Server 2012 (64 bit)

Supported SQL Versions

  • 2008 SQL Server and Express
  • 2008 R2 SQL Server
  • 2012 SQL Server and Express

ShipConstructor 2015 R2.1 Installation Guide

See SSI Nexus

Download Information

See SSI Nexus

Purchasing Information

To purchase the software or renew your Subscription contact an SSI Reseller
