For May 2025, we’re rolling out the first look at ShipConstructor 2026 and the newest capabilities in ShipbuildingPLM 3.1. This release focuses on platform modernization, richer change-management insight, and simpler ways to get the information you need—whether that’s on-screen, in a report, or inside SSI Nexus.
Join the SSI team on June 5 at 8am PST (11am EST, 5pm CET) for a webinar first look at all the improvements now available in ShipConstructor 2026 and ShipbuildingPLM 3.1.
Register NowWhat’s New
Annual platform upgrades
ShipConstructor now runs on AutoCAD 2026, Navisworks 2026, Windows Server 2025, and the .NET 8 runtime. Users get immediate access to the latest Autodesk toolsets, faster processing throughout ShipConstructor, and cleaner, more consistent UI grids and dialogs.
Outfitting Enhancement

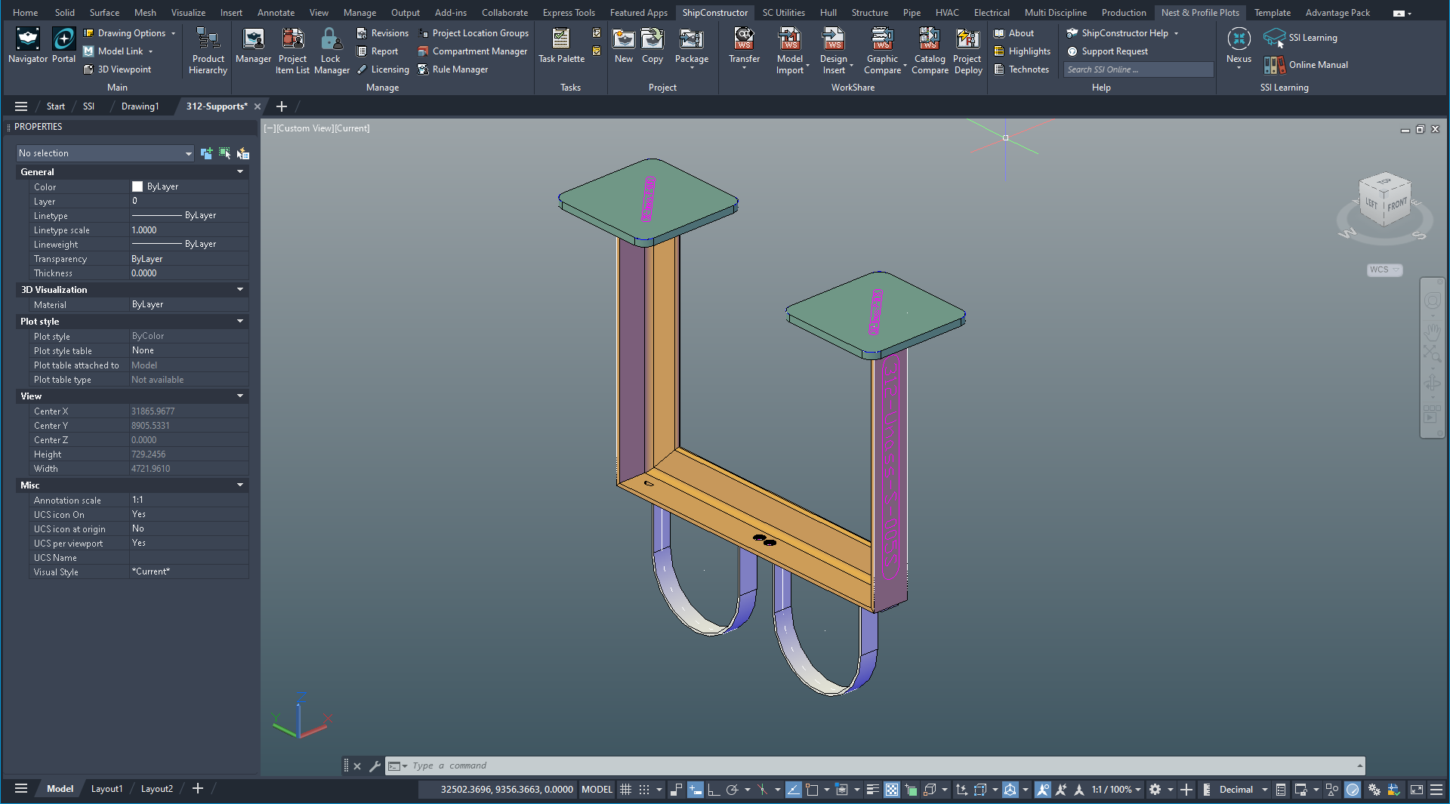

Pipe support assembly calculations
Pipe Support Components are now included in the Assemblies’ calculation capabilities, such as for weight, center of gravity (CG), and part counts in both BOMs and Reports.
It is now easier to deform pipe around obstacles with the addition of a right-click context menu for adding or removing zero-degree grip points to a bent pipe
Finally, we have improved Spool Dimensioning to be more intuitive. Previously, when connections were created, linemode icons and dimensions were placed at the midpoint of the connection gap between the ends being connected. Now, line mode icons are placed at each end at the respective end treatment positions.

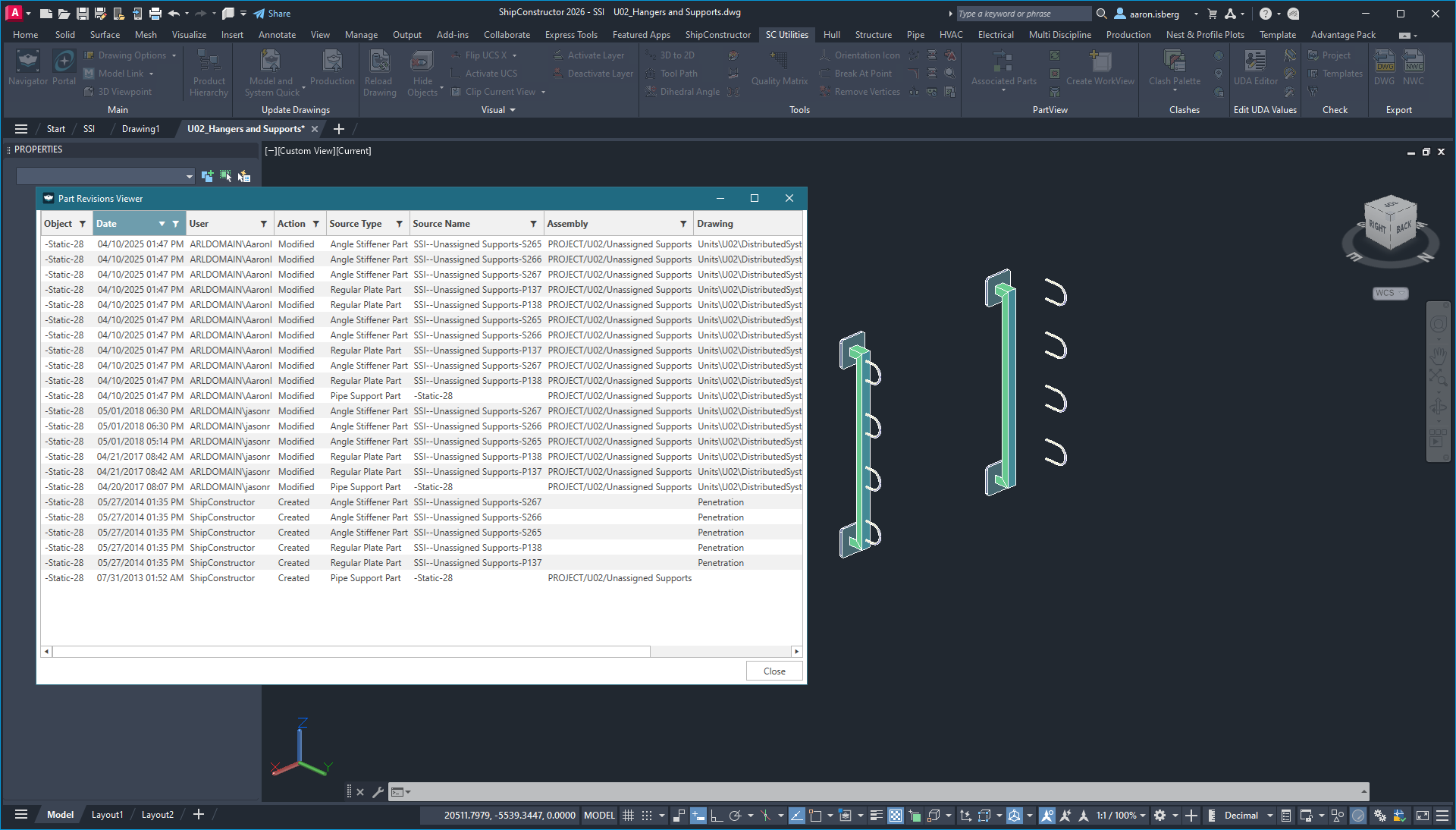

Pipe support revisions
All pipe-support components now participate in the Part Revision Viewer. See who changed what, when, and why—then drill into any modified geometry, attribute, or metadata field for a crystal-clear audit trail.
Production Preparation

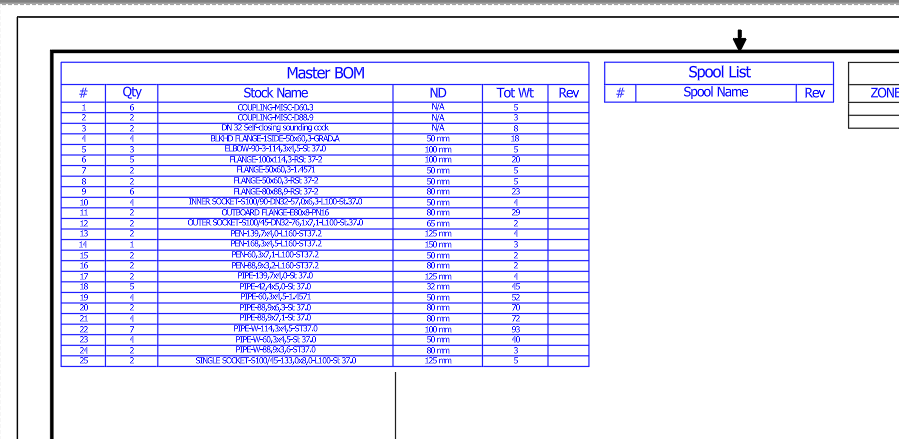

BOM and Drawing-Label Sorting
String sorting has moved from Windows NLS libraries to ICU for rock-solid, locale-independent ordering. Dashes, special symbols, and variable-length part numbers now sort as expected, keeping BOMs, labels, and callouts aligned across every workstation.
This impacts the following:
- BOMs without revisions, or with parts added since revisions
- Special characters (such as dash) now sort correctly
- Part numbers may change the number of digits, thus impacting label alignment or formatting.

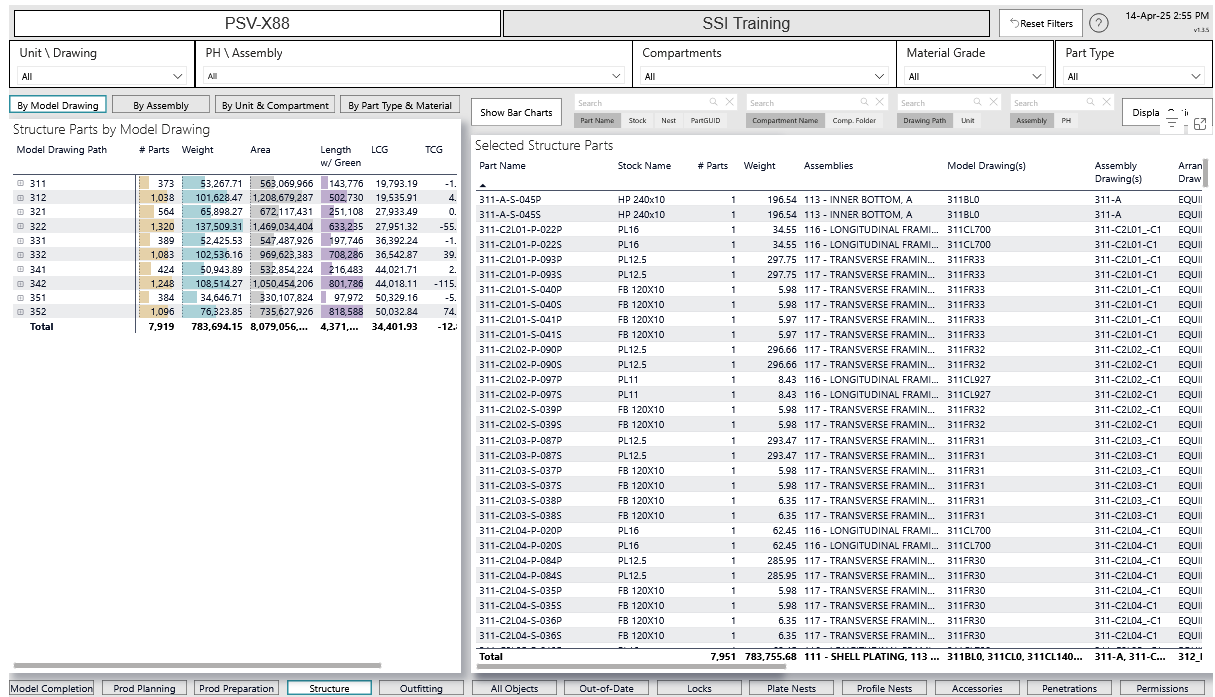

MIM Reports: Dynamic BOM & project summary pages
SSI Marine Information Model Reports (MIM Reports) now includes three additional pages to view dynamic bill of materials (BOM) and summary statistics from your ShipConstructor project, as well as a page to highlight drawings that may be out-of-date relative to the parts they reference.
Configuration and Change Management

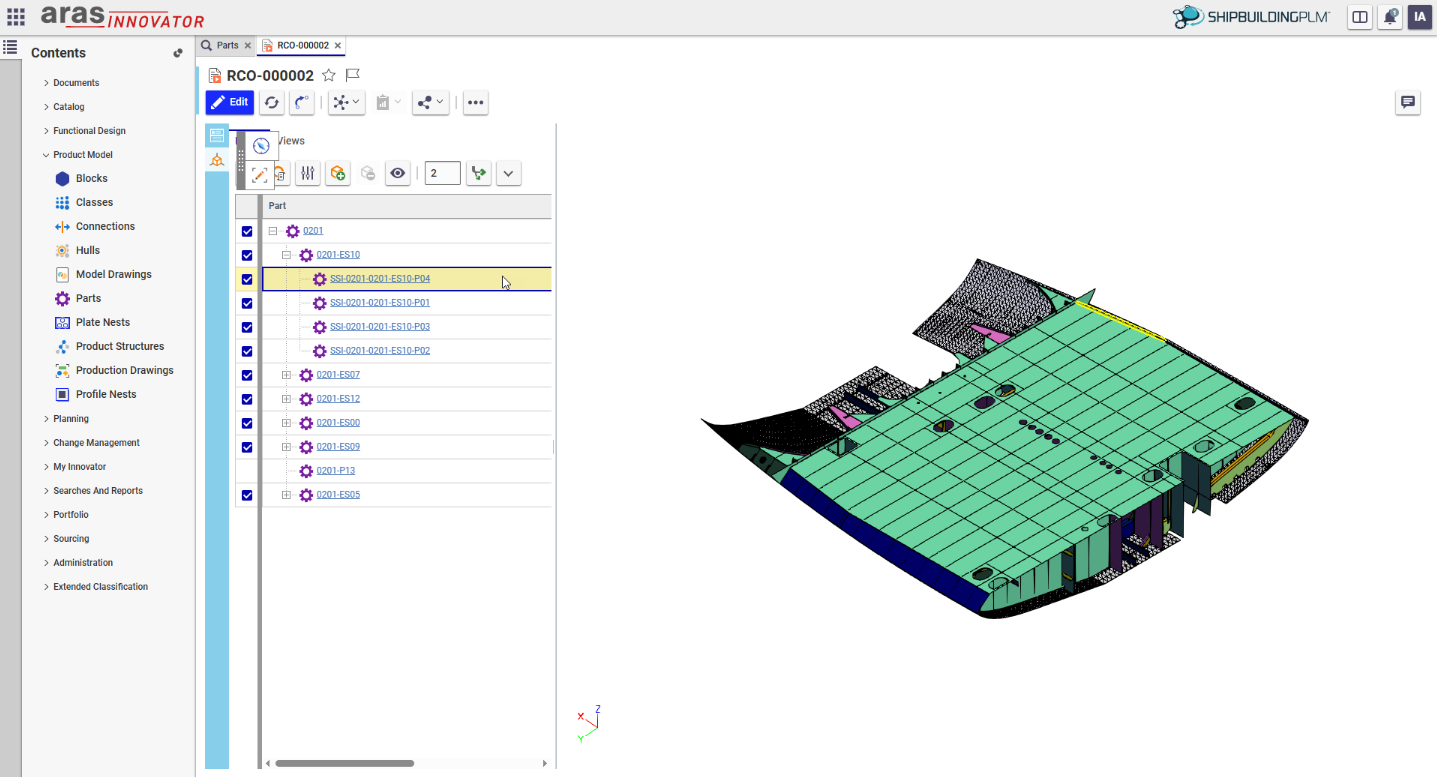

Release Container (RCO) Enhancements
Release Containers (RCOs) in ShipbuildingPLM allow Project Managers, Functional Designers, Detail Designers, and Engineering Leads to be more selective and more granular when releasing information downstream.
SSI ShipbuildingPLM now includes enhanced Release COntainer functionality including:
- 3D Visualization/DPN view for assembly/spool RCOs.
- The ability to add multiple assemblies from the same or differing parent assembly trees.
- Including RCO items in multiple, concurrent RCOs.
- Spools are included without dependency on parent items being included.
- Removing assemblies/spools to correct mistakes.
Additional Enhancements
ShipConstructor 2026 released
Available on SSI Nexus
Space allocation enhancements
Fixes and improvements
Change Management
Clash Status changes now captured in Revisions.
Autodesk 2026 and .NET 8 compatibility
Updated SSI Nexus Search
The updated search engine delivers faster, more relevant results across manuals, discussions, and knowledge-base articles. The online manual now mirrors the ShipConstructor ribbon, includes keyword/command metadata, and shows icons that tell you where each result will take you.
Task Management Certified Training
Now includes certificate verification.
Register for the Webinar
Register for the webinar below to watch it live or recorded and see these new features and improvements in action. There’s no better way to experience what’s new for this release.
System Requirements
| Supported Client Operating Systems | Windows 10, 11 (64-bit) |
| Supported Server Operating Systems | Windows Server 2025, 2022 |
| .Net Framework | .NET 8 (installed automatically) |
| SQL Servers | MS SQL Server 2022 CU 4+, 2019. SQL Server 2022 Express is included with the installer. Note: Express editions are suitable for projects with 5 or fewer users only. SQL Enterprise 2019+ for WorkShare Teams |
| Supported AutoCAD Platforms | 2026 AutoCAD, AutoCAD Mechanical, AutoCAD Plant3D (for ShipConstructor P&ID Design Validation functionality of Pipe) |
| Supported Navisworks Versions | 2026 Navisworks Simulate, Navisworks Manage |
| Side-by-side Installation Compatibility | ShipConstructor 2025 can be installed side-by-side with any previous major ShipConstructor version; each installed version of ShipConstructor requires its own dedicated instance of AutoCAD. |
| Supported Aras Innovator Versions | Aras Innovator 30 |
SSI Installation Guide
Access the latest ShipConstructor manual on SSI Nexus for detailed installation instructions and system requirements for this release.
Download Information
To download this release, visit the downloads section of SSI Nexus. There, you can get access to all the latest SSI releases.
Purchasing Information
For information on this release, to purchase the software, or to renew your Subscription contact an SSI Representative.
